Pipe Stress Analysis for Piping on Flare Boom

Pipe Stress Analysis for Piping on Flare Boom have some notices as below:

·        Flare tip thrust force and weight as received from SUPPLIER shall be considered in the analysis.

·        Pipe loops shall be considered to absorb displacements.

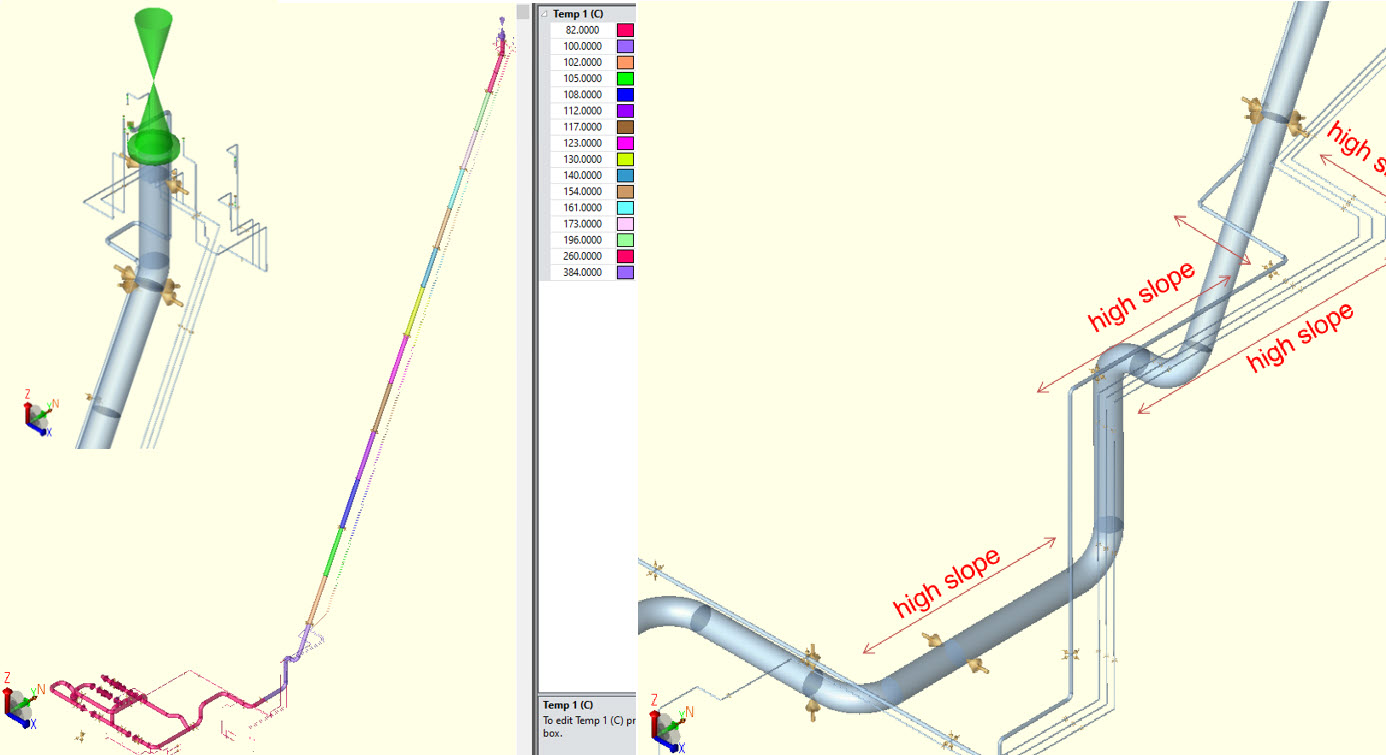

·        The maximum radiation temperature shall be considered on the flare tip as per the flare radiation and dispersion study report. The temperature profile along the stack shall be referred to this document.

·        Check pipe movement at penetration.

·        Indicate shoe length clearly

·        Pay attention to all small lines connect to the calculated line.

·        Pay attention to pipe modeling for transportation.
